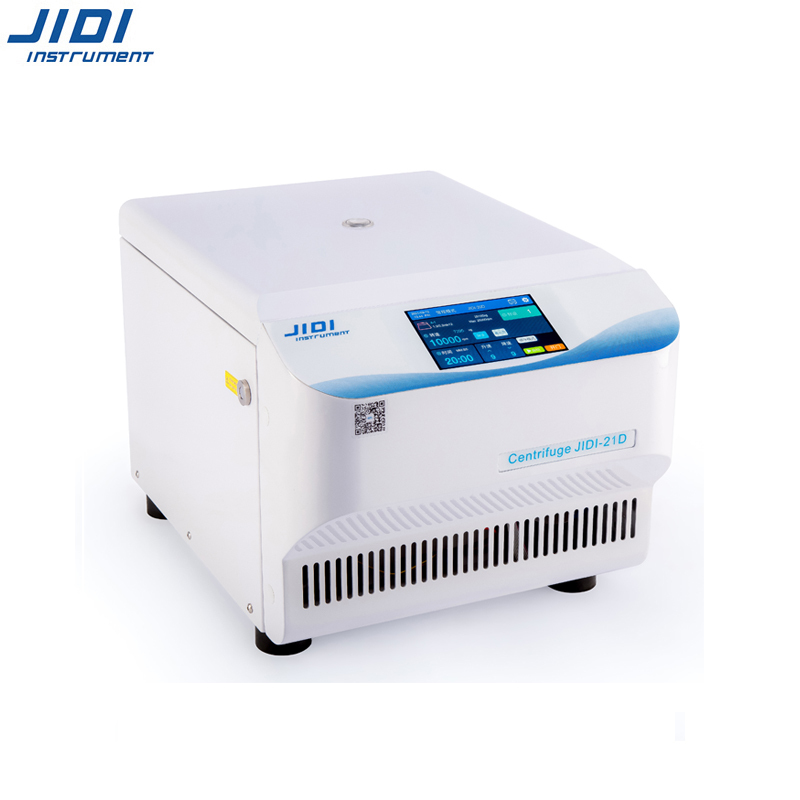

JIDI-21D table top high speed centrifuge

JIDI-21D table top high speed centrifuge

share
  • Detail
  • Parameters





Model

JIDI-21D


Max Speed

21800r/min

Max Rcf

33289×g

Timing range

0 ~ 99min59s/0-99h59min

Free switching

Speed Accuracy

±10r/min

Power supply

AC 220V 50Hz 10A

Noise

≤55dB

weight

33Kg

Size (W x D x Hmm)

516×360×330mmL×W×H





1.Adopt 7-inch HD touch screen "intelligent system",Display interface at the same time: speed, running time, temperature, speed

range, the current selected rotor specifications and models, the highest speed and the maximum centrifugal force, door cover

switching, real-time date, time and other functions;

2.Centrifugal force or rotational speed can be preset according to user's requirements to meet different centrifugal requirements

of users;

3.Real-time detection of the centrifuge speed, when the motor is not normal operation, the suspended popover display speed,

shielding all keys, to prevent users from misoperation caused by safety risks;

4.Background record every centrifuge operation data, users can view in real time, and support USB reading;

5.During operation, the change curves of speed, centrifugal force and temperature are displayed on the same screen, and the

change relationship is clear and intuitive, which is convenient for users to record centrifugal data;

6.Using humanized design,users can adjust the screen brightness, key sound, language selection, timing mode, automatic lid opening;7.Centrifuge special observation hole, upper and lower concave and convex thread design;8.Centrifugal cavity and cover air duct design circulating air duct system;9.The centrifugal chamber is made of high quality 304 stainless steel and coated with Teflon coating, which has good corrosion

resistance and durability;

10.Patented triangular link motor and three - stage damping system structure;11.The machine adopts ergonomic design, beautiful appearance, easy to operate, with door cover protection, overspeed,

overtemperature, imbalance and other protection functions, automatic fault alarm function, stable and reliable use;




The serial number

Rotor

max speed

Max.RCF(×g)

Max volume (ml)

NO.1

Angle rotor

21800

32676

12X1.5ml

NO.2

Angle rotor

18500

33289

24×1.5/2.2ml

NO.3

Angle rotor

14000

19721

36x1.5ml

NO.4

Angle rotor

15000

22513

12X10ml

NO.5

Angle rotor

16000

21210

12×5ml

NO.6

Angle rotor

12000

17064

12x15ml

NO.7Angle rotor1200016905

6x50ml

NO.8

Angle rotor

9000

9961

4×100ml








All pictures are taken in kind


Note: Related technology is protected by laws and regulations, counterfeiting will be prosecuted!



产品名称
table top high speed centrifuge
产品型号
JIDI-21D
