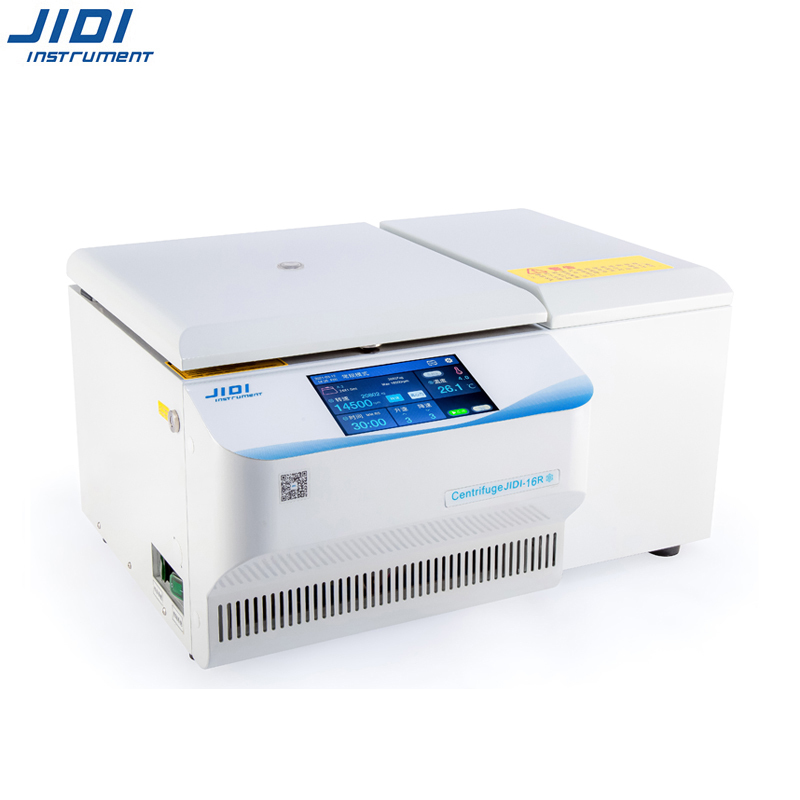

JIDI-16R table top high speed refrigerated centrifuge

JIDI-16R table top high speed refrigerated centrifuge

share
  • Detail
  • Parameters



Model
JIDI-16R
Max. Speed
16800r/min
Max. RCF
26480×g
Timing range
0 ~99min59s/0-99h59min
Speed Accuracy
±20r/min
Operating temperature
-20℃~+40℃
The power supply
AC 220V 50Hz 15A
noise
≤55dB(12000rpm,24*1.5ml)
Weight
64Kg
Size (L x W x Hmm)
520×650×365mm(L×W×H)





1.Adopt 5-inch HD touch screen "intelligent system",Display interface at the same time: speed, running time, temperature,

speed range, the current selected rotor specifications and models, the highest speed and the maximum centrifugal force, door

cover switching, real-time date, time and other functions;

2.Centrifugal force or rotational speed can be preset according to user's requirements to meet different centrifugal requirements

of users;

3.Real-time detection of the centrifuge speed, when the motor is not normal operation, the suspended popover display speed,

shielding all keys, to prevent users from misoperation caused by safety risks;

4.The background records each centrifuge operation data, the user can view in real time;

5.During operation, the change curves of speed, centrifugal force and temperature are displayed on the same screen, and the

change relationship is clear and intuitive, which is convenient for users to record centrifugal data;

6.Using humanized design, users can adjust the screen brightness, key sound, language selection, timing mode, automatic lid opening;7.Centrifuge special observation hole, upper and lower concave and convex thread design;8.Centrifugal cavity and cover air duct design circulating air duct system;9.The centrifugal chamber is made of high quality 304 stainless steel and coated with Teflon coating, which has good corrosion

resistance and durability;

10.Patented triangular link motor and three - stage damping system structure;11. The whole refrigeration system adopts advanced automatic constant temperature control technology, high refrigeration accuracy,

rapid cooling system, room temperature 25℃ to 4℃ less than 3min, high stability, high reliability.

12.The machine adopts ergonomic design, beautiful appearance, easy to operate, with door cover protection, overspeed,

overtemperature, imbalance and other protection functions, automatic fault alarm function, stable and reliable use;




The serial number
Rotor
max speed
Max.RCF(×g)
Max volume (ml)
NO.1
Angle rotor
16800
19405
12X1.5ml
NO.2
Angle rotor
16500
26480
24×1.5/2.2ml
NO.3
Angle rotor
14000
19721
36x1.5ml
NO.4
Angle rotor
13000
16910
12×10ml
NO.5
Angle rotor
14500
16278
12×10ml
NO.6
Angle rotor
11000
14339
12x15ml
NO.7
Angle rotor
10000
11739
6x50ml
NO.8
Angle rotor
9000
9961
4×100ml








All pictures are taken in kind


Note: Related technology is protected by laws and regulations, counterfeiting will be prosecuted!





产品名称
table top high speed refrigerated centrifuge
产品型号
JIDI-16R
